Product Details
- Amazon Sales Rank: #12157 in Camera & Photo
Features
- Effio-E platform 700 TV Line
- Sony 1/3" 700 TVL Effio Color CCD sensor
- True Day/Night feature with IR The infrared project distance is up to 35 meters (114 ft)
- Built-in powerful IR LED illuminator Weatherproof (IP66 standard)
- Lens: 2.8~12 mm Varifocal Adjustable Lens
700TVL Day Night Outdoor Security Camera 1/3" SONY Effio Color CCD Wide View Angle 2,8mm - 12mm Adjustable ZOOM Lens 42 Infrared LEDs 114 Feet IR Range for CCTV DVR Home Surveillance System
Product Description

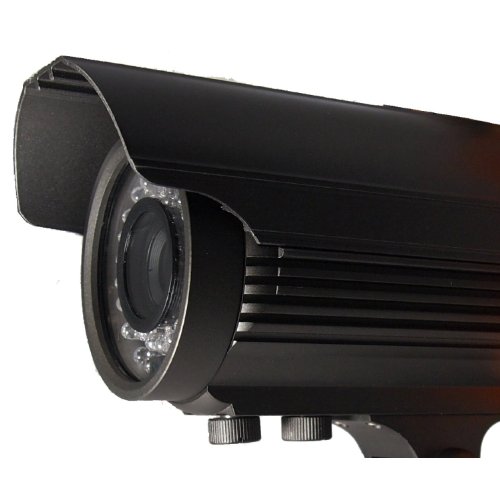

700 TVL Weatherproof IR Camera with Sony Effio Platform and 2.8~12mm Lens
With robust weatherproof casing, this indoor/outdoor camera is ideal for your surveillance applications and it works well in the areas such as rain, dust, or wet environment. This infrared color camera works on day and night and it will do automatically switch to black and white picture at night. It provide you with the clear high resolution image. Equipped with 42 infra-red LEDs, this camera will make any objects visible up to 114FT. The camera easily connects to your TV, VCR or security monitor for the protection of your home, office or other valuables.power supply sold separately. If you need power search with this ASIN ON AMAZON : B004IM4R5K Features :
Weatherproof Indoor and Outdoor Day and Night Vision
Clear resolution 700TV Lines video display Powerful 1/3" Sony Super Had CCD color image sensor chip set Effio Platform
42 infra-red LEDs see in the dark up to 114ft Easy to install and connects to your existing TV, VCR, DVR Quad Process Operates in freezing temperatures down to 4°F(-20°C)
Technichal Details :
Image Sensor :1/3" Sony High Resolution CCD Effio Platform
Signal System :NTSC
Effective Pixels :NTSC: 811(H)x 508(V)
Resolution :700 TV Lines
MIN. Illumination :0.0 Lux (IR on)
S/N Ratio :More than 48 dB
Auto Electronic Shutter :1/60 to 1/100,000 sec
Lens Types :2.8~12mm Vari-focal ZOOM Lens
Infrared LED :42 Pcs
Infrared Distance :114FT
Video Output :1.0Vp-p 75?
Power Supply :DC 12V, 500mA Min. (1A Recommended)
Note : This camera has Sony Color Powerful Sony Effio Platform As chipset and sensor. But It's not made by sony.
Customer Reviews
Most helpful customer reviews
3 of 3 people found the following review helpful.
By R. Ashe
First ImpressionsThe case, wiring, and packing materials seem to all be decent quality, however the mounting screws are very cheap soft metal, I am sure they will rust within weeks and you have to make sure you pre-drill the mounting holes to keep from stripping the screws. Also, the mounting bracket greatly limits how you can mount this camera, but I did like the very easily accessible external zoom and focus controls. The nicest part about the controls was that you can adjust them by hand instead of needing a tool.I do think the inline joystick control for the on screen display is a little strange. How are you supposed to see the screen if you are mounting the camera outside of your house for a DVR that is inside? I ended up using the web interface of my DVR, my laptop, and my wireless network to check out the OSD settings of the camera. So I was perched on a ladder outside by the camera clicking the joystick control while watching the output on my laptop, not very safe if you ask me, and if you do not have all of the above (wireless network, laptop, DVR with a web interface) then the joystick control is pretty much useless.InstallationInstallation was relatively easy since I was replacing an existing CCTV camera, installation was only a matter of drilling screw holes that matched the mounting bracket. After installation the picture itself was pretty impressive; in daylight this camera outperformed all of my other CCTV cameras, even one that cost twice as much. The instant it got dark however, the problems started.The Bad NewsAs soon as it was dark enough for the camera to switch to Black and White, the screen filled with static and was completely useless for monitoring purposes. For about 30 seconds at a time the picture would clear and be viewable, then it would go back to heavy static. At first I thought it was my DVR or possibly a setting in the camera, but after about an hr of fiddling with both the DVR and the camera I've concluded that its defective.I am sending this camera back as soon as possible and recommend everyone steer clear if they want a quality CCTV camera.
